Capabilities
Every gear leaves Bangalore calibrated to the drawing, or it doesn't leave.
Precision-engineered gears for every application — built in one IATF 16949-certified plant, using PPAP control plans and APQP for every new part.
Section · Products
Our product range.
Materials, heat treatment and finishing are confirmed per program against the customer's drawing and PPAP requirements. Click any tile to enlarge.
Automotive parts
Engine gears
Helical gears and pinions
Pulleys
Shafts
Sprockets
Internal splines
Gears with pawl
Power tool gears
Satellite gears
Planetary gears
Sector gears
Shop floor
Built around Swiss, German and Japanese machinery.
Fourteen process stations. Reishauer for grinding, Liebherr for hobbing, Carl Zeiss for inspection — the names that set the world standard for gearmaking.
01

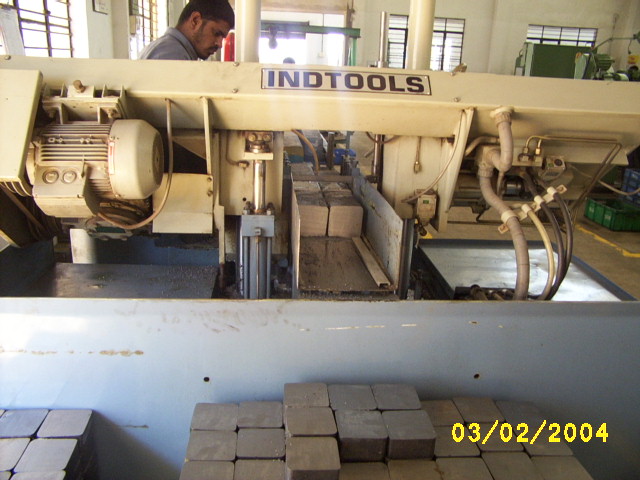

Bandsaw cutting
ITL · Accurate
02

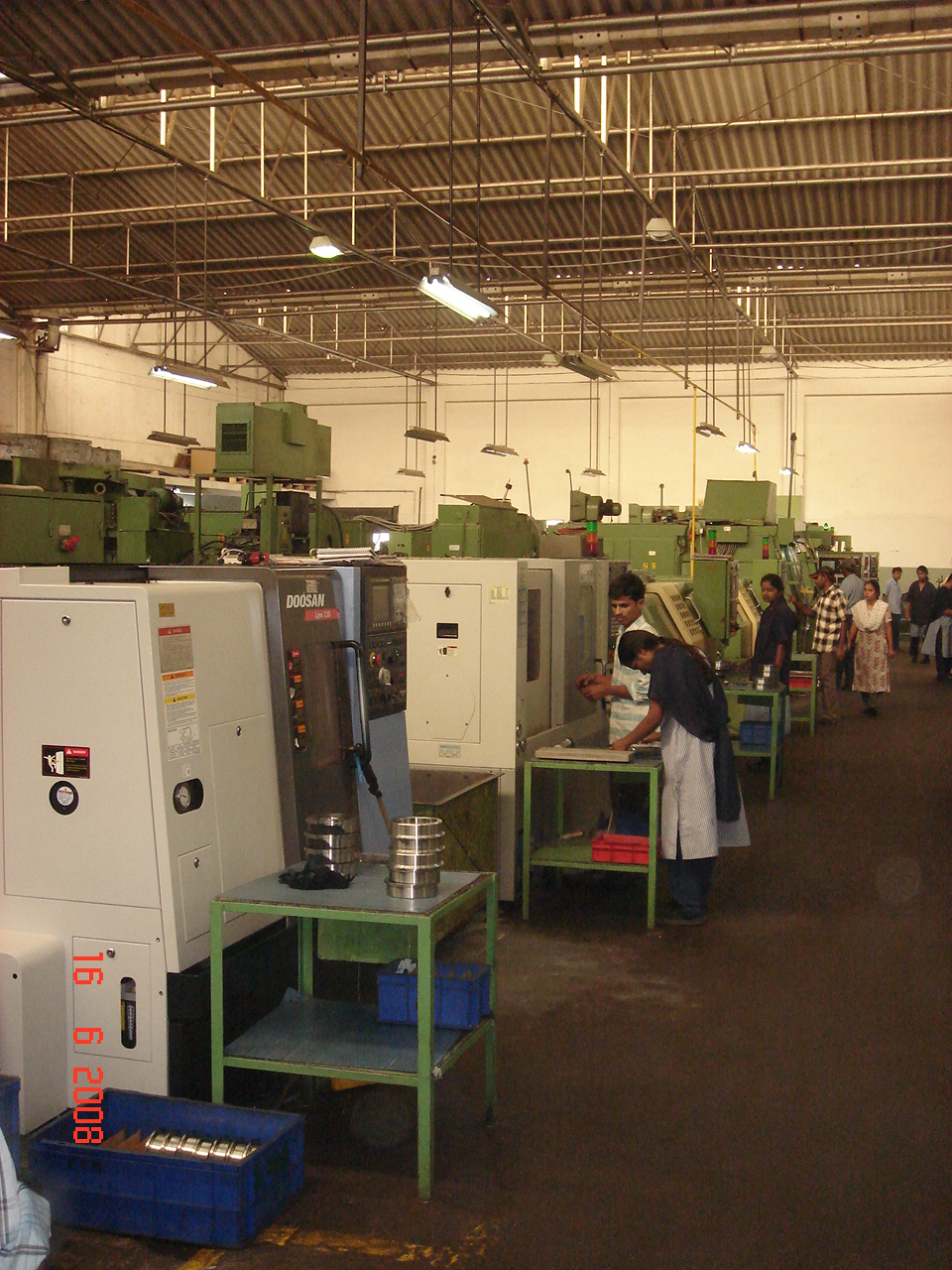

CNC turning
LMW · Doosan
03

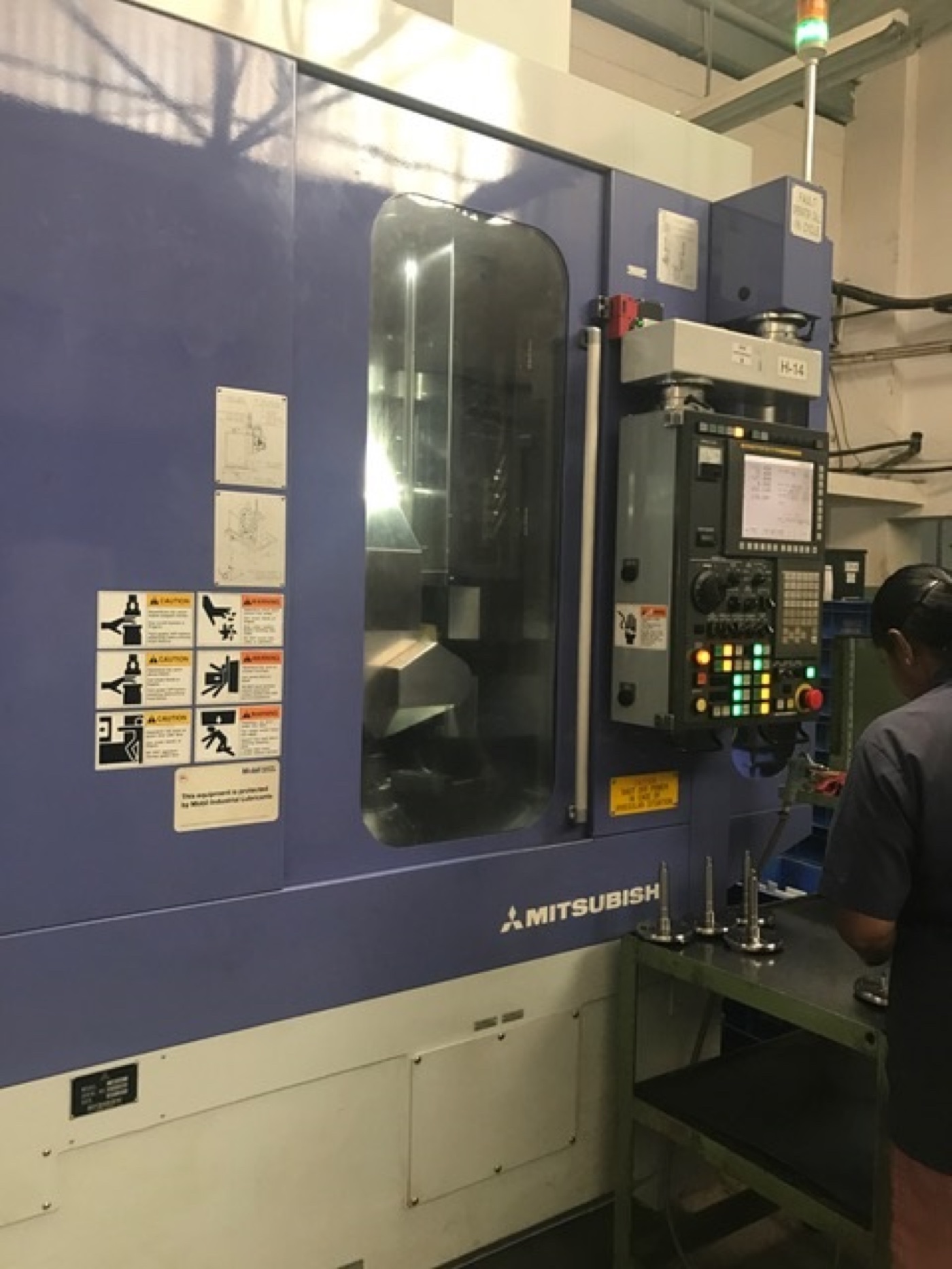

Gear hobbing
Mitsubishi · Liebherr · Pfauter · HMT · WMW
04

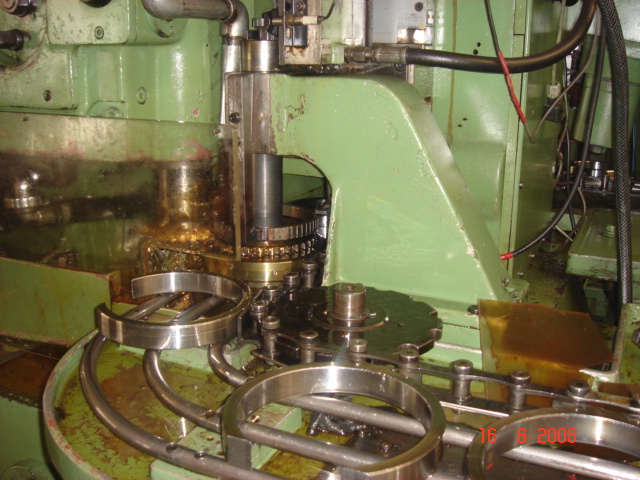

Gear shaping
Lorenz · Liebherr · HMT
05

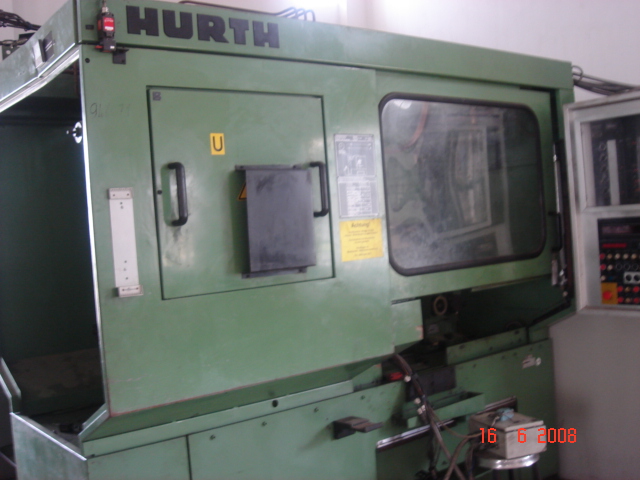

Gear shaving
Hurth
06

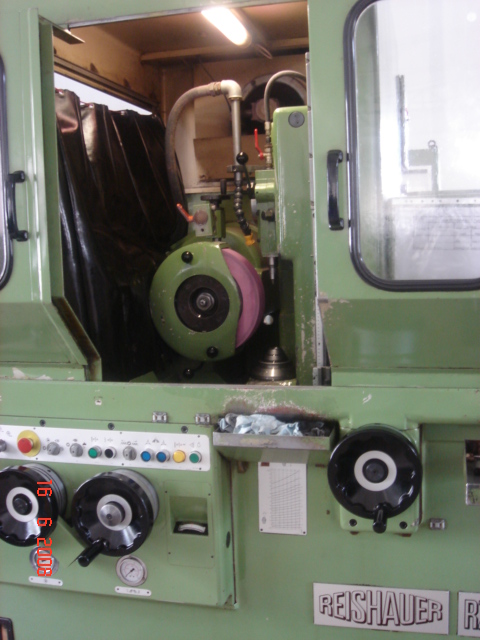

Gear grinding
Reishauer
07

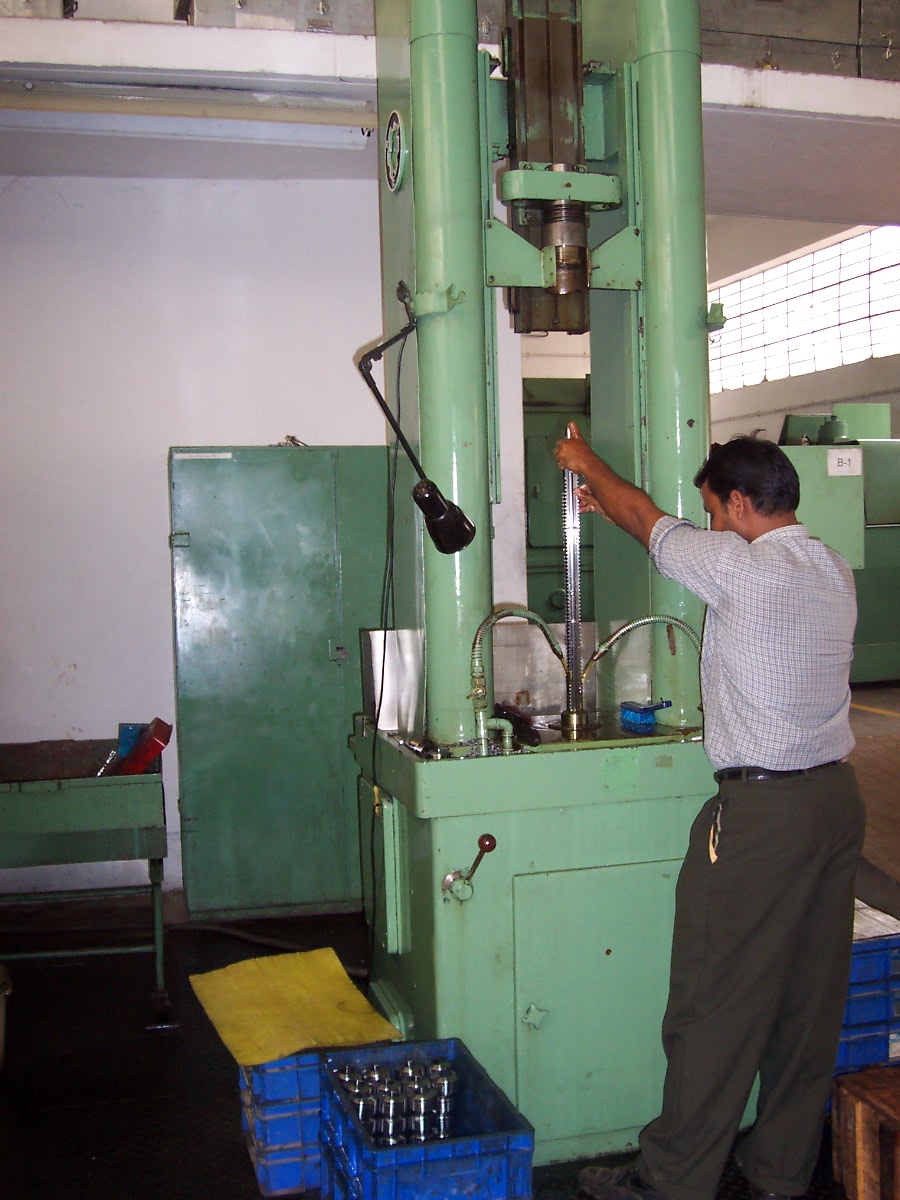

Broaching
Klink · Stanko
08

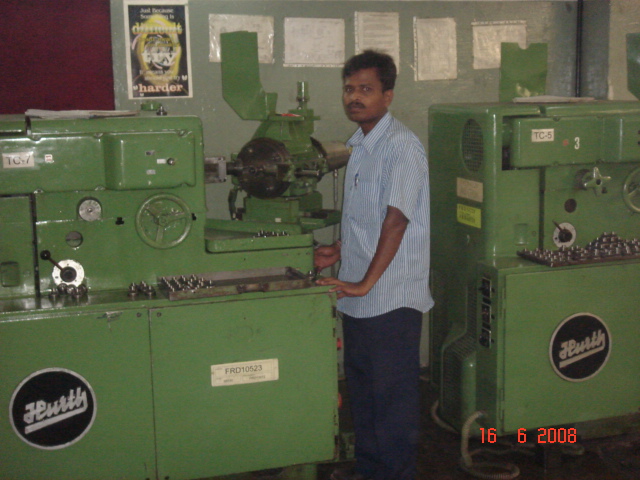

Teeth chamfering
Hurth · Hey10 · Gratomat
09

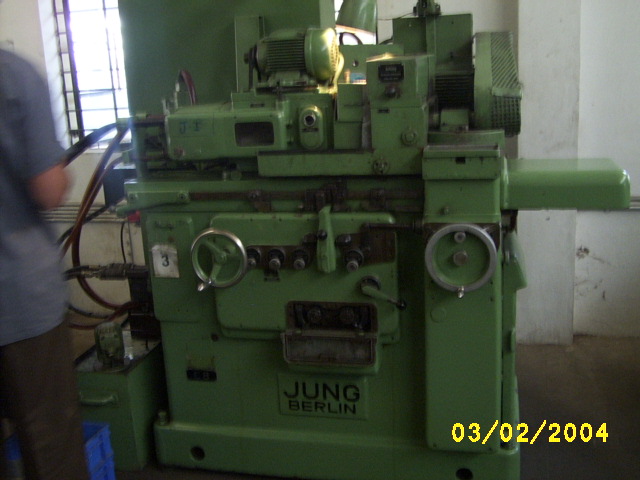

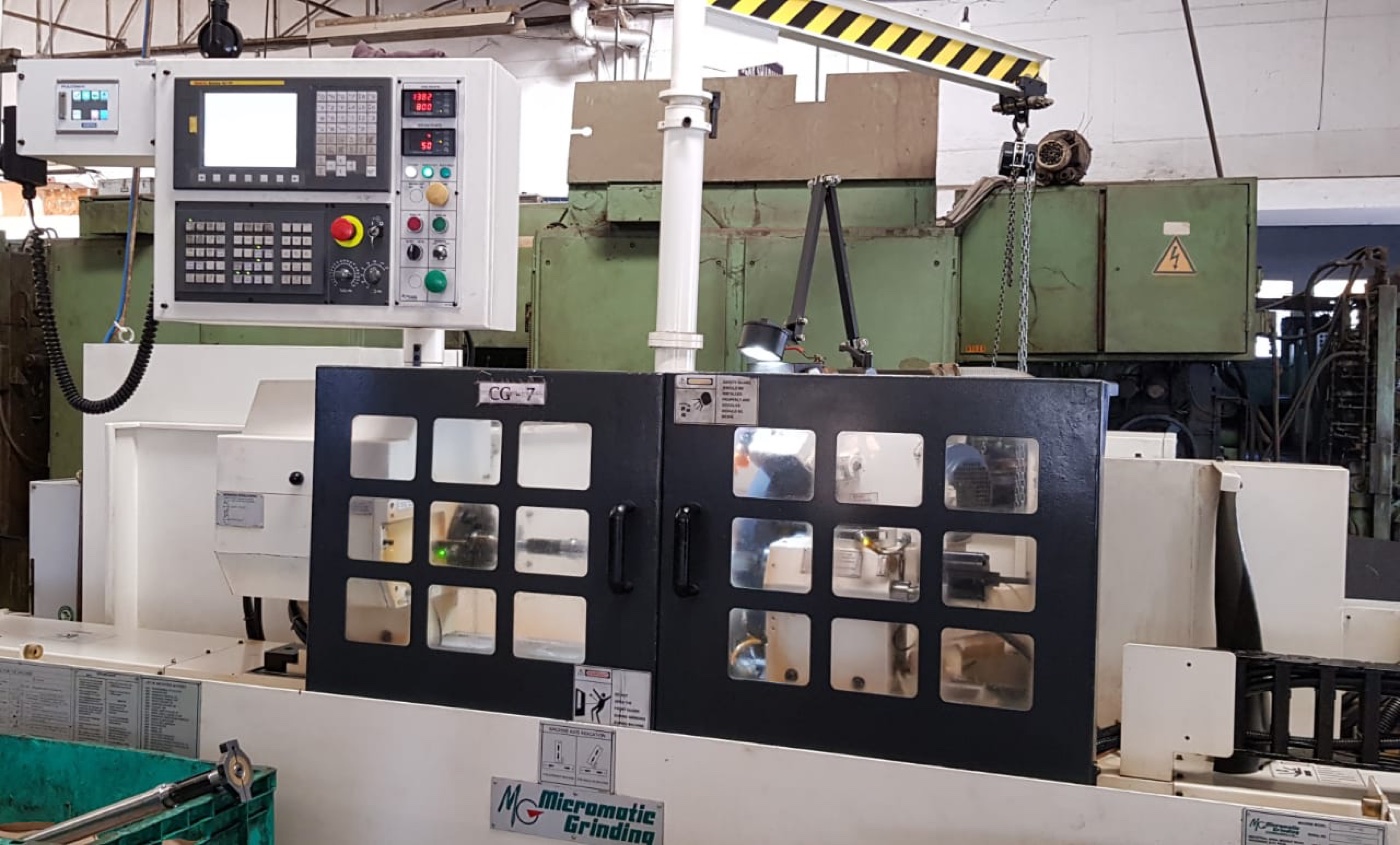

Cylindrical & internal grinding
Ace Micromatic · WMW · Reinecker · Jung
10

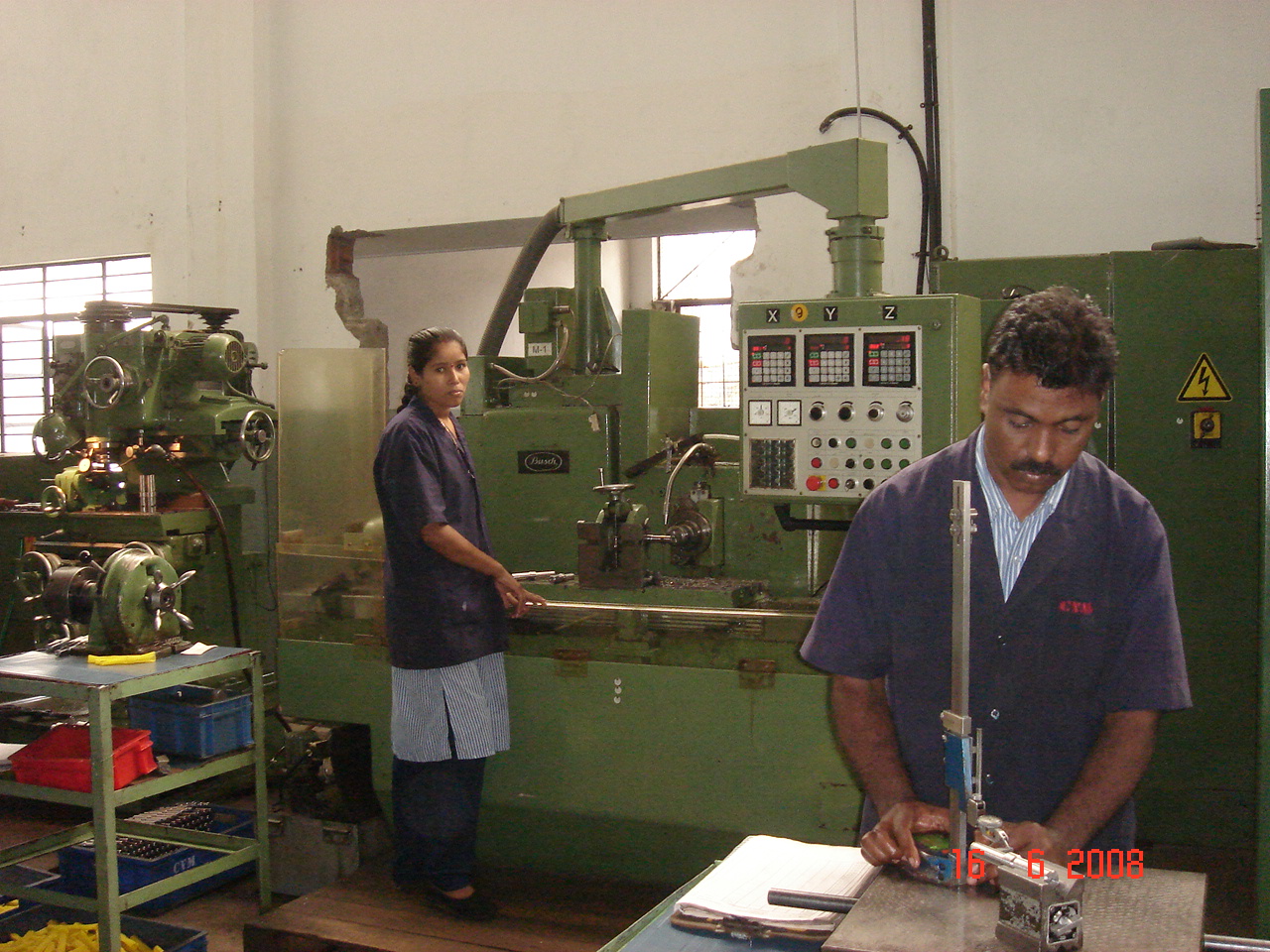

Milling
LMW · Busch · HMT
11
Drilling
EIFCO · Webo
12

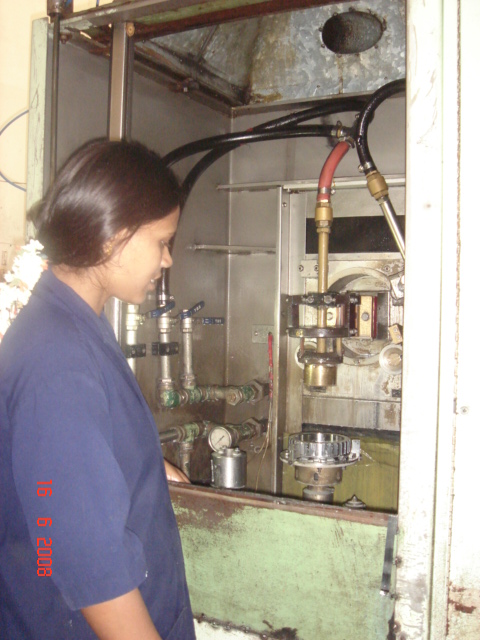

Induction hardening
EFD
13

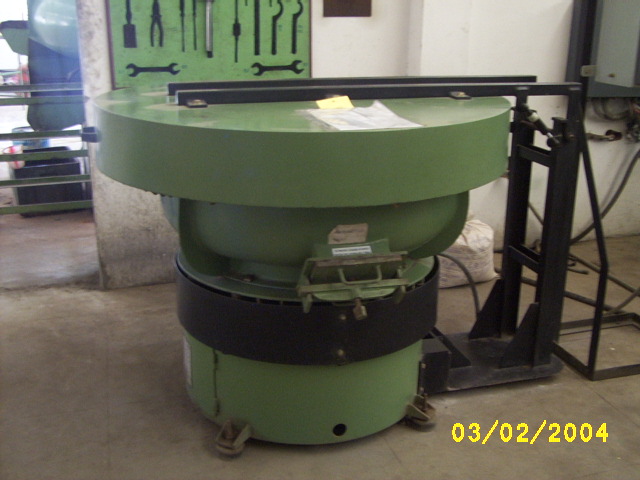

Lapping & deburring
Rotomax · Hurth
14

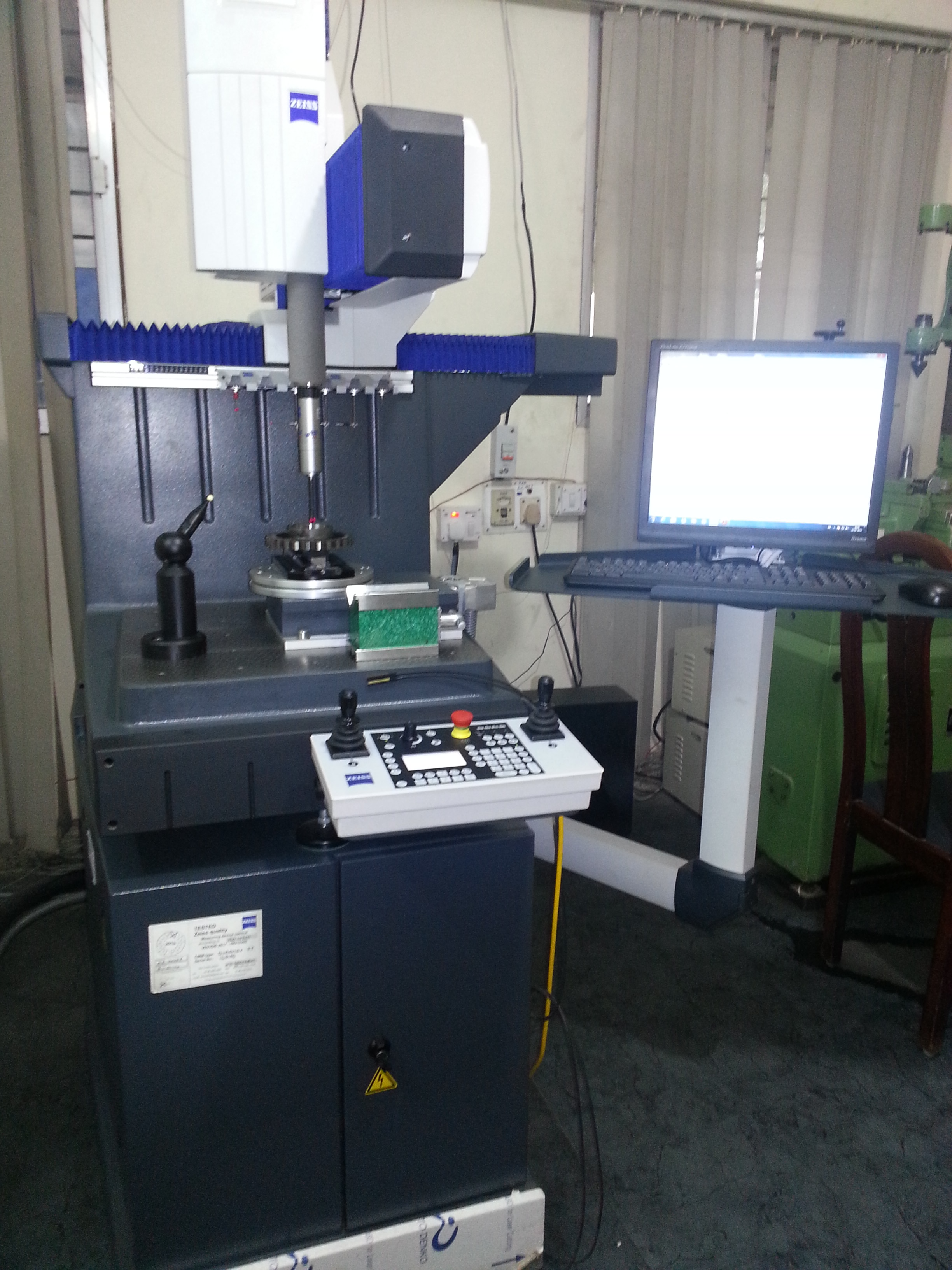

Gear testing
Carl Zeiss
Capability matrix · at-a-glance
Quality grades typical · confirmed per program
Process
Module (mm)
Diameter (mm)
Method
Quality (typical)
Spurs · external
0.5 – 6.0
10 – 400
Hobbing → shaving / grinding
DIN 6 / AGMA 10
Spurs · internal
1.0 – 4.0
25 – 220
Shaping → broaching
DIN 8 / AGMA 8
Helicals
1.0 – 3.0
10 – 400
Hobbing → shaving / grinding
DIN 6 / AGMA 10
Gear shaving
0.5 – 3.0
25 – 300
Hurth shaving
DIN 7 / AGMA 9
Gear grinding
0.5 – 3.0
25 – 300
Reishauer grinding
DIN 4 / AGMA 12
Have a drawing? Send it over.
PDF, STEP or DXF. We'll come back with a quote and a production plan.
